The instant maximum hoisting force of 64 kg is enough power for big games. It is the appearance of a new color.

Operating margin power even for Kimmedai (red bream)/Akodai (red rock fish) fishing with an instantaneous maximum winding force of 64 kg. By sub motor installation, subtle drag adjustment and clutch ON/OFF are made possible with switch operation. Drag is effective even if a big game hits in the stop state of the shelf with the shakuri (sink-and-draw motion) function which can be set arbitrarily. Equipped with a fishing force control function that adjusts winding up by an electric reel. Multi plate type drag system which can also finely adjust the drag.

Download catalog Download Operation Manual
Target fish (Target fishing)

●Kimmedai (red bream)/Akodai (red rock fish) fishing
●Bluish-skinned fish fishing such as Buri (yellow tail)/Hiramasa (yellow tail amber jack) etc.
●Light Oyogasetsuri (bait-fishing) (Kanpachi (greater amber jack) )
●Light deep sea fishing (Kimmedai (red bream)/Kuromutsu (Black Japanese bluefish)/Akamutsu (black-throat seaperch)/Medai (Japanese butter fish)

Part numberCAC-5SC
Power supplyDC-12V
JAN (Japan Article Number) code (last 5 digits)02753
Line winding volume
NEW Deep sensorPE LINE #5-1,100m
PE LINE #6-900m
PE LINE #8-700m
PE LINE #10-500m
PE LINE #12-400m
PE LINE #15-300m
PE LINE #20-200m
Maximum load of omission#350
Drag tolerance20.0kg-40.0kg
Instant maximum hoisting force64kg
Sustained winding up force20kg
Maximum hoisting speed/when without load150M/min.
Manual winding gear ratio1:1.92
Power consumption2.6-15A
Operating temperature-10℃-80℃
Backlash prevention method
Ball bearing10 pieces
Reel self-weight2.4kg
Electronic controlHoisting force control
Stop at the bulwarks、Depth memory
Slow start・Slow stop
Stemless speed change

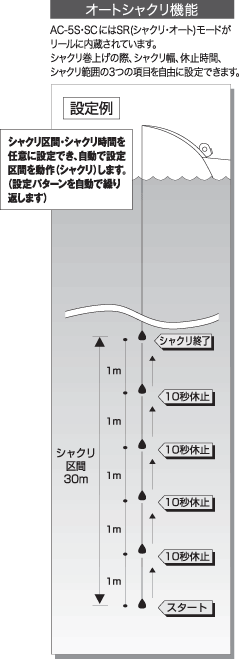

Automatic shakuri (sink-and-draw motion)
Safety mechanism+/- Reverse connection prevention、Overload stop control
AccessoriesHandle、Power cord
Reel size (W×H×D mm)250×150×120mm
Manufacturer's list price of the bodyContact us for pricing

* The price indicates the manufacturer's list price only but does not include consumption tax.
* This specification may be changed for improvement without notice.

Explanation of the function icons
