●●Oki Mebaru (darkbanded rock fish) fishing in Hokkaido/Tohoku District
●Osaba (large mackerel) fishing in Tokyo bay mouth/Sotobo
●Mejiro (middle-sized Japanese amber jack) fishing offshore Mutoro
●Renkodai (yellow back sea bream (Dentex tumifrons)/Oki Mebaru (offshore darkbanded rock fish) fishing in the Sanin district
●Bishima (bobbin) thread fishing off Okinoshima

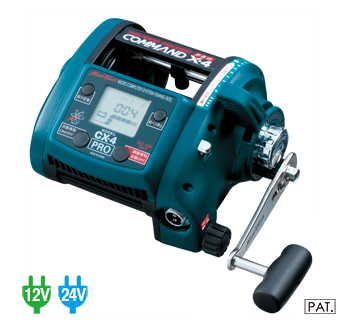

| Item | CX-4 PRO | ||
|---|---|---|---|
| Power Source | DC-12V | DC-24V | |
| Product Code | 02272 | 02302 | |
| Line Capacity | When use NEW DEEP SENSOR（PE） （When winding down adapter is used） | PE LINE #5－1,200（600）ｍ PE LINE #6－1,000（500）ｍ PE LINE #8－800（350）ｍ PE LINE #10－600（250）ｍ PE LINE #12－500（200）ｍ PE LINE #15－300（150）ｍ | |
| Maximum load of omission | #250 | #350 | |
| Drag tolerance | 20kg－28.8kg | ||
| Instant maximum hoisting force | 25kg | 35kg | |
| Sustained winding up force | 13kg | 20kg | |
| MAX.Drag Winding Speed (No load) | 110M/min | 170M/min | |
| Manual winding gear ratio | 1：3 | ||
| Power consumption | 2.2～16A | 0.8A－13A | |
| Operating temperature | -10℃－80℃ | ||
| Backlash prevention method | Sound brake | ||
| Ball bearing | 7 pieces | ||
| weight | 1.8kg | ||
| Functions | Stop at the bulwarks、Depth memory Slow start・Slow stop Stemless speed change(Pause/Minimum speed-Maximum speed) | ||
| Safety mechanism | +/- Reverse connection prevention、Overload stop control Battery voltage drop detection、Over-voltage detection | ||
| Accessories | Power cord, Cord for series connection (24V only) | ||
| Reel size (W×H×D mm) | 175×100×155mm | ||
| List Price | Contact us for pricing | Contact us for pricing | |
- Hoisting force control [Patented]This will automatically control the hoisting speed in response to hit fish pulling.
- Drag assist leverDrag assist lever mounting type with excellent operability compared with ordinary drag knob.
- Depth memoryBy setting/storing memory of arbitrary shelf, it can automatically stop at the shelf at the next throwing.
- Big Power HandleA big handle is mounted on the power handle. It is effective for assistance at big fight.
- Power HandleStrength increased with the increase of the wall thickness. Grip is also easy to grasp,assist at steering wheel has become more effective.
- One-touch free handleA handle mounting a one-touch free mechanism that prevents reverse rotation of the handle during“Automatic delivery” operation.
- Sound brake systemA system that applies a slight brake to the spool and prevents backlash.
- Click sound brake systemIn addition to the normal sound brake function, it informs of the hit by the loud volume click sound.
- High speed automatic winding functionBy pressing and holding the automatic winding switch for a long time, wind up at the highest speed to the stop position at the bulwarks.
- Automatic Shakuri (sink-and-draw motion) functionAutomatic Shakuri (sink-and-draw motion) and dropping function within an arbitrary range. By repeating sink-and-draw motion it attracts hits.
- Danbiki-shakuri (step pull and sink-and-draw motion) functionStart an arbitrary Shakuri (sink-and-draw motion) with one switch. Automatic winding up to the stop position
at the bulwarks after finishing of Shakuri (sink-and-draw motion).
- Guard armGuard arm is equipped to prevent scratches on the body due to contact as standard.
- Automatic deliveryThe spool will be reversed with one switch and delivers the line. It is effective when aiming for additional bites.
- Chum winding upIt scatters chum with high speed Shakuri (sink-and-draw motion) from any shelf and attracts the target. Automatically winds up to the stop position at the bulwarks after a certain period of inactivity.
- CE markCE marking indicates that the product conforms to the essential requirements specified in the EU directive and regulations by sector. In addition, “Self-Certification” conforming to CE marking is posted on our website.
